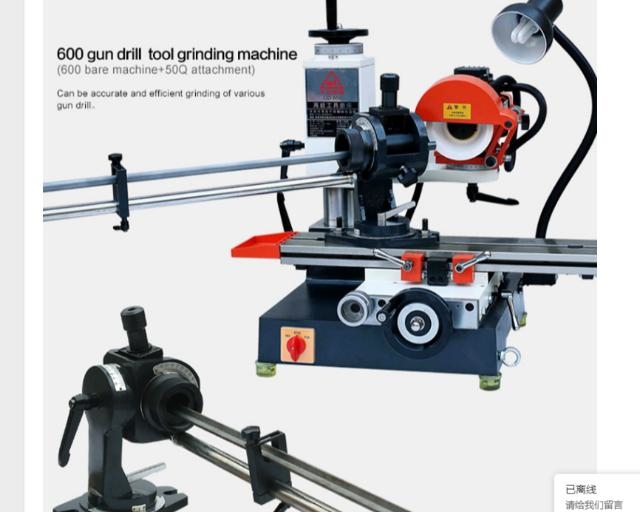

Gun drill(deep hold drilling) tool grinder

Features

♦ GD-600Q Gun drill tool grinding machine adopts high-precision rolling guide and high speed motor. Smooth operation with less friction. Grinding head can be rotated in horizontal and vertical planes. Widely applicable to machine tools. Together with grinding attachment can ensure accurate and effective grinding of a variety of gun drills; ♦ 50Q Gun drill grinding attachment is specially used for grinding blades of gun drills. Compact structure, reasonable and convenient setup, simple adjustment, time-saving processing (one setup can complete all angles grinding), the processing of drilling blades with high precision and good accuracy. Grinding range is Ф3~Ф38mm (optional: Ф2~Ф42mm). Grinding blade length is 200~3000mm; ♦ This machine is suitable for grinding the angles of deep hole gun drills, having beatuful appearance, stable precision, easy operation. Specifications GD-600+50Q Horizontal Travel of the Oprating table 270mm Longitudinal travel of the operating table 170mm Area of the operating table   130*600mm Elevating Distance of Wheel Head 140mm Rotating Angle of Wheel Head  360° Grinding Wheel Size 125*50*32mm Speed of grinding Wheel  2800 RPM Gross Weight 162kg Packing size LxWxH（cm) 76x65x65
